GB/T 2679.5 MIT Folding Endurance Tester For Paper Board

Name: GBT 26795 MIT Folding Endurance Tester For Paper Board
Brand: GESTER
Price: 1 USD

GB/T 2679.5 MIT Folding Endurance Tester For Paper Board Manufactures

Brand Name : GESTER

Model Number : GT-N16

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Product name : Mit Folding Endurance Tester

Warranty : 1 Year

Certificate : CE ISO

Application : paper and boards

Measuring Range : 0 - 99999

Feature : reliable, professiona

Price : Factory Price

Color : Gray

Contact Now

MIT Folding Endurance Tester For Paper Board

Introduction

GT-N16 MIT Type Paper Folding Endurance Tester has various functions, such as, parameter testing, parametric transformation, parameter regulation, parameter display, parameter memory and parameter print. The tester has data processing function which can directly output result of statistical
data with convenient operation, easy regulation and stable performance. The main functions are shown as following , compact structure, light weight, abundant functions, horizontal type and stable performance, so the tester is suitable for different paper and boards.

Standards

ISO 5626, GB/T 2679.5, QB/T 1049

Key Specification

Measuring Range	0 - 99999
Folding Angle	135±2°, Folding Frequency: 175±10 times/min.
Folding Head Width	19±1mm; Folding Radius: 0.38±0.02mm.
The spring tension	4.91N~14.72N, when every 9.81N tension is added, the compression of spring is 17 mm reduced at least.
The clearances between folding ports	0.25, 0.50, 0.75 and 1.00mm (four ranges)
The tension change due to the eccentric rotating of clamping folding head	Should not be larger than 0.343N.

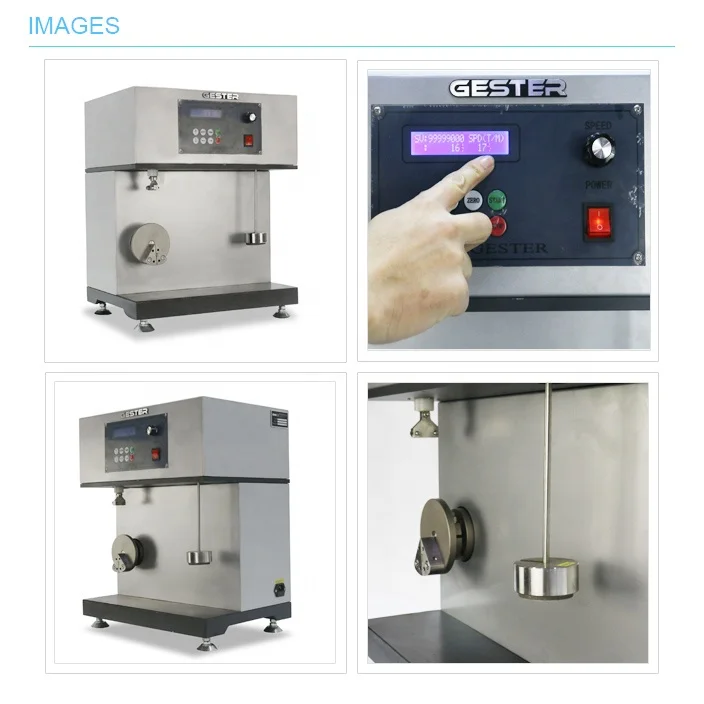

Product Image

GB/T 2679.5 MIT Folding Endurance Tester For Paper Board
