SATRA TM161 ISO 17707 Footwear Whole Sole Flexing Tester

Name: SATRA TM161 ISO 17707 Footwear Whole Sole Flexing Tester
Brand: GESTER
Price: 1 USD

SATRA TM161 ISO 17707 Footwear Whole Sole Flexing Tester Manufactures

Brand Name : GESTER

Model Number : GT-KB06

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30 days

Packaging Details : wooden packaging

Product name : SATRA TM161 EN Whole Shoe Sole Flexing Resistance Tester

Warranty : 1 Year

weight : 80kg/100kg

Key words : Shoe Sole Flexing Resistance Tester

Advantage : On-site installation training

On-site installation training : 30 mm

Benefit : Provide professional standard testing solution

Feature : Factory price

Counting : LCD, 0-9999999

Certificate : CE ISO

Contact Now

Shoe Testing Machine Footwear Whole Sole Flexing Tester

Application

SATRA TM161 EN Whole Shoe Sole Flexing Resistance Tester Desk and Bed Universal Testing Machine is used for testing the mechanical properties of tables and desks. Can perform the horizontal static load and durability test, vertical static load and impact test.

Standards

SATRA TM161, ISO 17707, ISO20344 section8.4.2 ,

ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2

GB/T 20991section8.4.2, QB/T 2885, DIN 53543

Key Specification

Model	GT-KB06A	GT-KB06B
Test position	3	6
Bending angle	90±2 °
Bending speed	125-150cpm
Mandrel diameter	30 mm
Clamps apart	110±1mm
Movable fixture stroke	41.5 ± 0.5 mm
Counting	LCD, 0-9999999
Power supply	AC 220V 50/60HZ
Dimensions	105x42x55cm	105x70x55cm
Weight	80kg	100kg

Accessories

Standard accessories

1set

Spanner

1pcs

Chisel cutter(2mm)

1pcs

Power line

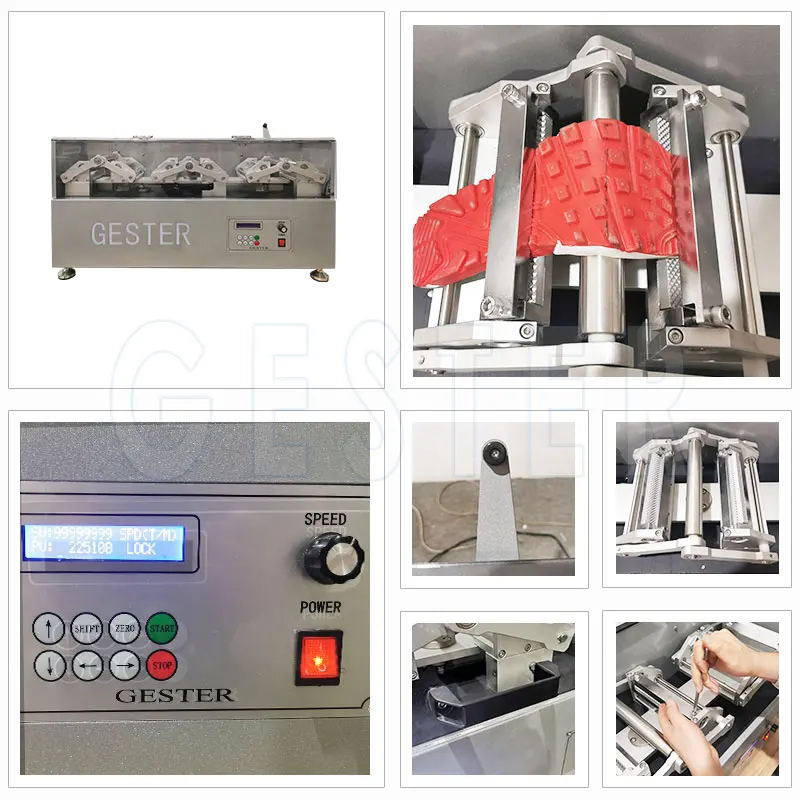

Product Image

Fixture Set		Fixture
	Can do 3 sets for every test		Clamp sample on fixture set, bending the sample by movable fixture
Control Panel		Vent
	It is to set test parameter		Internal ventilation for machine
Protection Cover
	To protect any dust and personnel safety

SATRA TM161 ISO 17707 Footwear Whole Sole Flexing Tester
